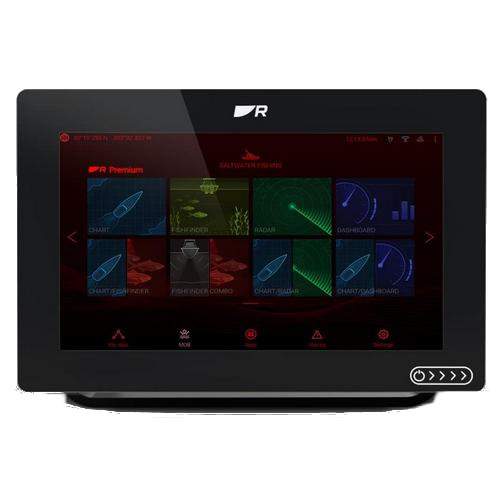

Raymarine E70636 Axiom+ 9 Multifunction 9" Display

  • Brand Raymarine
  • Part # E70636
  • Model # Axiom+ 9
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    E70636 Includes Only:

    • Multifunction Display
    • Trunnion bracket
    • Trunnion knobs x 2
    • Suncover - Trunnion mount
    • Panel mount gasket for surface/flush mounting
    • Rear mounting brackets: supplied with 9" Multifunction Display
    • Documentation pack
    • M5x58 Threaded studs x 4
    • M5 Thumb nuts x 4
    • DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)
    • Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

    The performance-tuned Axiom Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision 3D sonar.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Display Size9.0 inch High Density IPS
    Display Resolution1280 x 720 (WXGA)
    Display TypeMultitouch with HydroTough rugged hydrophobic coating
    Brightness1,500 nits
    Viewing Angle85 Top, Bottom, Left, Right
    Mounting OptionsSurface, Flush, Trunnion
    Power Voltage12V DC (8V to 16V DC)
    Power Consumption (Full brightness)8.95 Watts. RV Sonar version 11.98 Watts
    Ethernet1 x 10/100 Mbit/s Network (RayNet)
    Wi-FiWiFi - 802.11 a/b/g/n
    Internal Memory16 GB Solid State
    External Memory1x MicroSD Card Slot
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Display Size9.0 inch High Density IPS
    Display Resolution1280 x 720 (WXGA)
    Display TypeMultitouch with HydroTough rugged hydrophobic coating
    Brightness1,500 nits
    Viewing Angle85 Top, Bottom, Left, Right
    Mounting OptionsSurface, Flush, Trunnion
    Power Voltage12V DC (8V to 16V DC)
    Power Consumption (Full brightness)8.95 Watts. RV Sonar version 11.98 Watts
    Ethernet1 x 10/100 Mbit/s Network (RayNet)
    Wi-FiWiFi - 802.11 a/b/g/n
    Internal Memory16 GB Solid State
    External Memory1x MicroSD Card Slot
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
