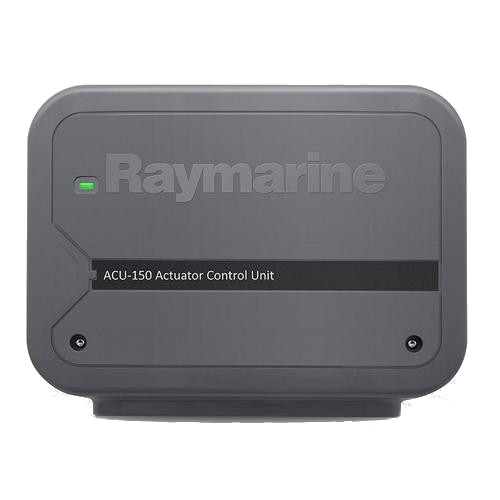

The Raymarine ACU-150 is a component of the Evolution Autopilot system and is designed to provide power and control to a Raymarine Type-1 Hydraulic Drive Unit (M81120). The ACU-150 connects to the SeaTalkng network for communication with its other peripherals. It also has connections for an optional Rudder Reference Unit (sold separately). The ACU-150 works on 12-volt DC systems only.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Nominal power supply	12 V
Operating voltage range	10.8 V to 15.6 V dc
Drive current output	Maximum continuous 12 A at supply voltage
Drive clutch output	No clutch connection
Connections	Rudder reference sensor, Power, Drive motor, Ground
Power consumption (standby) main power supply	300 mA (12 V)
Waterproof rating	Connector panel - IPX2, Drive electronics - IPX6

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Nominal power supply	12 V
Operating voltage range	10.8 V to 15.6 V dc
Drive current output	Maximum continuous 12 A at supply voltage
Drive clutch output	No clutch connection
Connections	Rudder reference sensor, Power, Drive motor, Ground
Power consumption (standby) main power supply	300 mA (12 V)
Waterproof rating	Connector panel - IPX2, Drive electronics - IPX6

Note

Note: Please read description carefully. Do not base your order on the picture presented.
