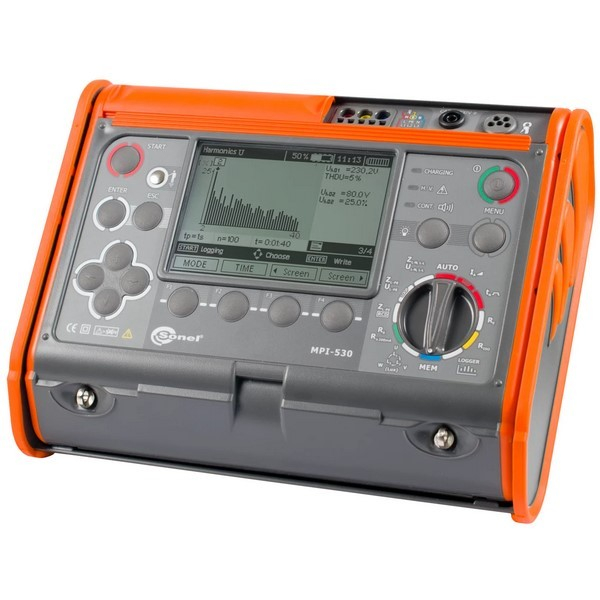

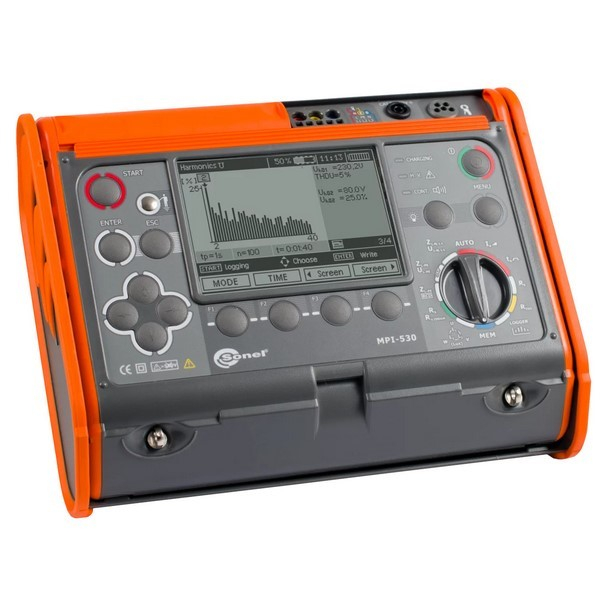

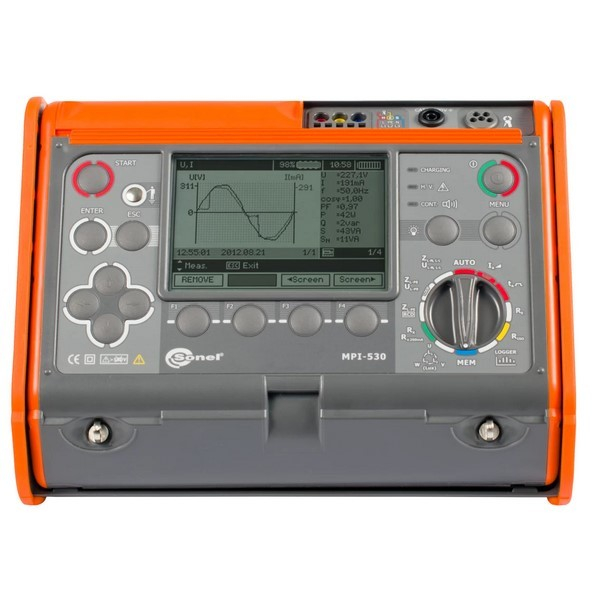

Sonel, WMUSMPI530IT, Multi-Function Meter of Electrical System Parameters
WMUSMPI530IT Includes Only:
- Multi-function meter
- Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) blue
- Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) yellow
- Test lead 1 kV (banana plugs) red 1.2 m
- Test lead 15 m for earth resistance measurements (on a reel, banana plugs) blue
- Test lead 30 m for earth resistance measurements (on a reel, banana plugs) red
- Cable for battery charging from car cigarette lighter socket (12 V)
- NiMH battery 4.8 V 4.2 Ah
- Pin probe CAT III/1000V CAT IV/600V (banana socket) red
- Pin probe, blue 1 kV (banana socket)
- Pin probe CAT III/1000V CAT IV/600V (banana socket) yellow
- Earth contact test probe (rod), 30 cm
- Carrying case
- Crocodile clip, blue, 1 kV, 20 A
- Crocodile clip, red, 1 kV, 20 A
- USB cable
- Crocodile clip, yellow, 1 kV, 20 A
- Hanging straps
Features:
- Works in IT Mains
- MPI-530-IT can be used for all measurements for commissioning of electrical installations in accordance with applicable regulations:
- short circuit loop impedance (also in circuits secured with RCDs),
- RCD parameters, » insulation resistance,
- earth resistance (4 measurement methods + soil resistivity measurement),
- continuity of protective and equipotential bondings,
- light intensity measurement,
- phase sequence test, » motor rotation direction test.
- MPI-530-IT can record 50/60 Hz power quality parameters:
- voltage L1 - average values in the range up to 500 V,
- L1 current - average values, current measurement in the range up to 3 kA (depending on the current probes used),
- frequency in the range of 40 Hz - 70 Hz,
- active (P), reactive (Q) and apparent (S) power,
- power factor (PF), cosφ,
- harmonics (up to 40th for voltage and current),
- total harmonic distortion (THD) for current and voltage.
Inspection of electrical safety
This device may be used to inspect safety of electrical systems in households and industrial facilities. Measurements can be easily automated with:
- auto mode of residual current devices (RCD) tests,
- the WS adapter that can be used for testing systems via standard 230 V sockets,
- AutoISO-1000C adapter for automatic insulation resistance test of 3-, 4- and 5-conductor cables, without switching.
Memory structure
The memory structure has a tree form. It has the ability to store tens of thousands of results in the configuration of CLIENT-OBJECT-FACILITY-MEASURING POINT, which helps to create a clear test protocol during later stages. This structure may be prepared in the meter, before starting the work. Entering data into the device is facilitated by QWERTY keyboard with Bluetooth communication module.
Built-in help system
The device has built-in help screens with measurement diagrams. Thanks to this you can easily and quickly check and make sure how to connect to a given system depending on the type of performed measurement.
Increased resistance to environmental conditions
The MPI-530-IT meter will cope well in difficult environmental conditions. Protection against penetration of dust and water is ensured by a unique housing with a level of protection IP54. It is resistant to mechanical damage, and a special design allows you to easily protect the screen by shielding using the cover of the meter. In addition to the fact that it protects against damage, it also allows you to conveniently carry and use the device in different positions.
Communication and software
You can easily transfer measurement data to your computer via USB port or Bluetooth wireless communication. In order to generate a report on measurements for electric shock protection, use Sonel Reports PLUS software. Saving the downloaded data to the simplest formats and printing is provided by free Sonel Reader software.
Professional and versatile
The multifunctional meter of parameters of electrical installations Sonel MPI-530-IT is used for precise measurements of electrical installations. The device has been constructed in compliance with the requirements of EN 61557 standard. It makes it possible to carry out all measurements connected with protection against electric shock described in the HD 60364-6 standard.
The Sonel MPI-530-IT specialised meter is distinguished by extensive ground measurement functions - additional clamp methods and soil resistivity. Using the optional AuroISO-1000C adapter, automatic insulation resistance measurements are also possible in sockets and for 3-, 4- and 5-core cables.
With the use of the Sonel MPI-530-IT meter it is also possible to test the illumination intensity. An additional external probe is required for this purpose. The instrument can record and analyse network parameters - including harmonics up to 40th. Another advantage of the meter is the robust IP54 casing, which protects the device from mechanical damage, dust or splashing.
The meter offers a wide range of functionalities. It combines the measuring capabilities of several devices, while ensuring equally good accuracy.
For more information, please see
Data Sheet
