Features
- Measurement voltage selected within the range of 50…1000 V
- Automatic discharge of the measured object's capacitance upon completion of insulation resistance measurement
- Measurement current ≤2 mA
- Protection against measurement of live objects
- Two-lead method of insulation resistance measurement
Additional features
- Capacitance measurement after measurement of RISO
- Low-voltage measurement of resistance

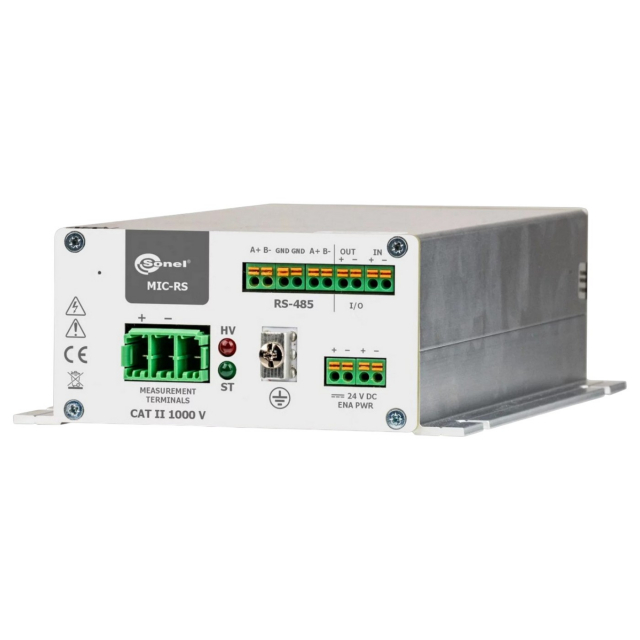

- RS-232 or RS-485 interface
- Data transmission to a controlling device through the MIC-RS-SCP or Modbus communication protocol
- External power supply
- The instrument meets the requirements laid down by standard EN IEC 61557

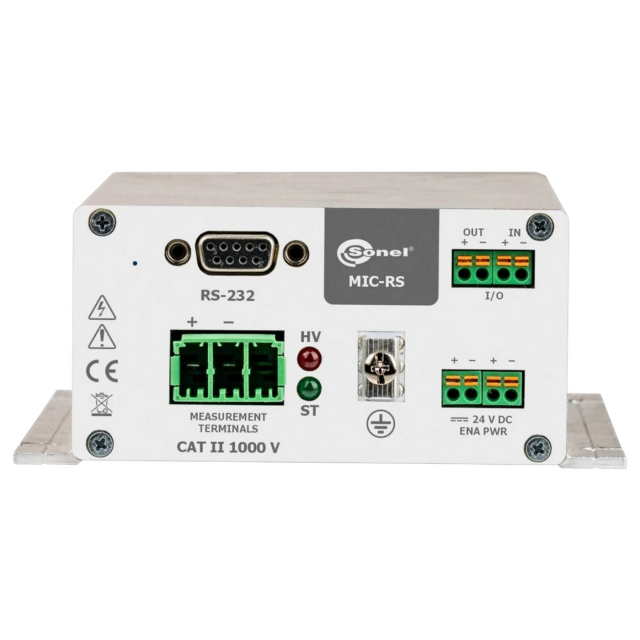

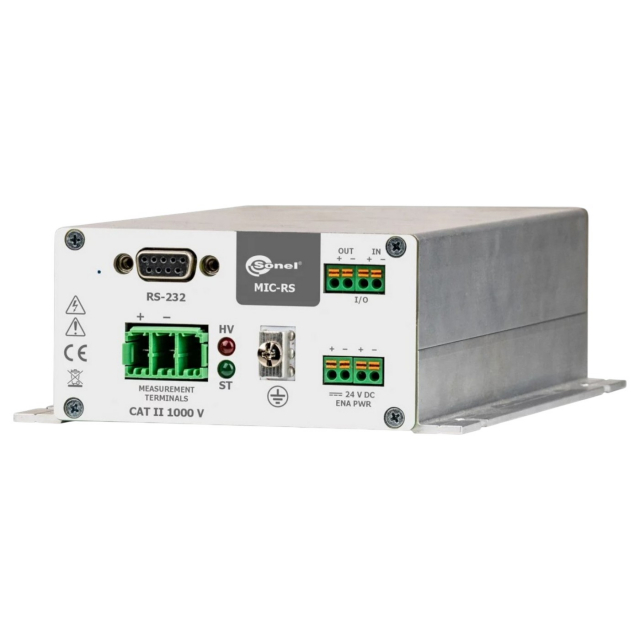

The meter is designed for building in/permanent installation. It plays a Secondary/Slave role, meaning that it executes the commands issued by the Main/Master control device and it does not initialise the transmission on its own. It enables measuring the insulation resistance with the test voltage of up to 1000 V.
Response and communication
The functionality of the instrument is extended by digital input and output. This enables the meter to respond to the events in the system, in which it operates.
The meter is operated from the Main/Master control device by means of the MIC-RS-SCP serial communication protocol or Modbus protocol. It enables, for example, starting and stopping the measurement of resistance, reading the measurement result or changing the configuration of the instrument.
Designed for the industry
The instrument is dedicated for companies and sites, in which continuous or random assessment of the insulation resistance is required as part of production. It is also perfect for automated production systems.
The meter can be installed in the distribution board, at the operator's station (assembly or quality control bench), in the control cabinet or even in the rack enclosure. The measurement is performed by means of clamps, used to connect the test leads of the system, in which the instrument is installed.
