| Output |
| Output Voltage | 230 VAC ± 3% |
| Maximum Output Current | 13.04A |
| Output Frequency | 50 / 60 Hz ± 1% : Switch Selectable (Default 50 Hz) |
| Type of Output WaveForm | Pure Sine Wave |
| Total Harmonic Distortion | < 3% |
| Continuous Output Power (at Power Factor = 1) | 3000 Watts |
| Surge Output Power | 6000 Watts (< 8 ms) |
| Peak Efficiency | > 88% (at full Load) |

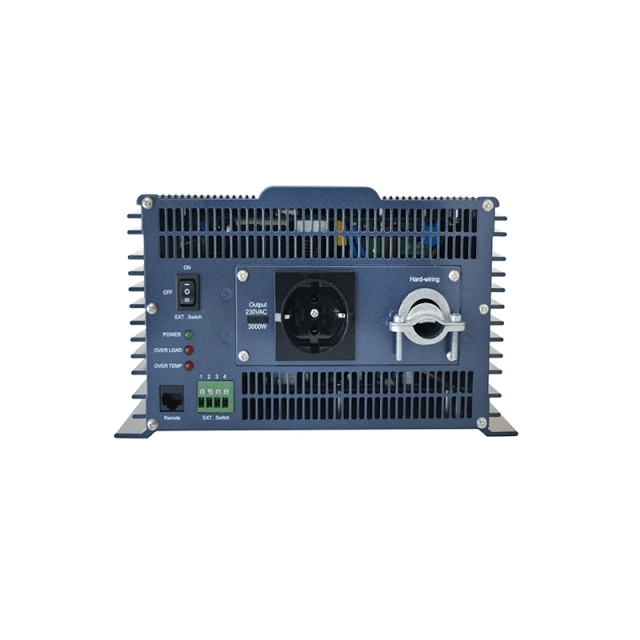

| Output Connections | - European "Schuko", CEE 7/3 AC Receptacle
- Terminal block for hardwiring
|
| Input |
| Nominal DC Input Voltage | 12V |
| DC Input Voltage Range | 10.7 - 16.5 VDC |
| Maximum Input Current | 420A |
| DC Input Current at No Load | < 1.6A |

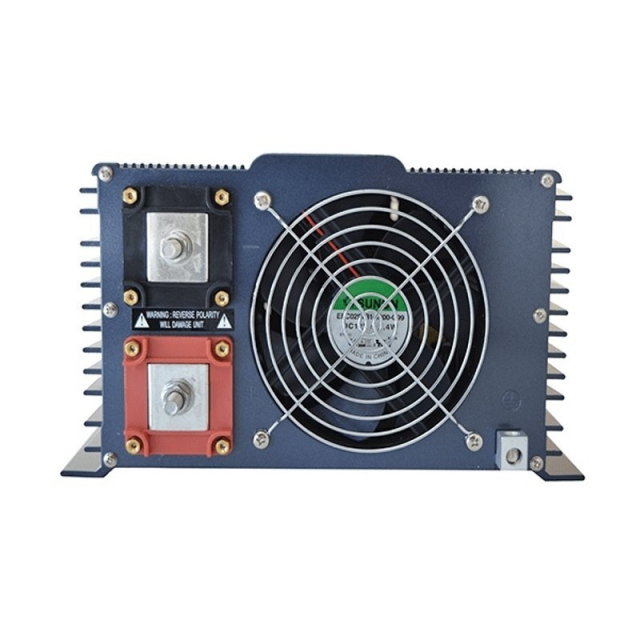

| DC Input Connections | Bolt & Nut: 5/16” x 18 TPI |
| DC Input Fuses (Internal) | 12 X 35A = 420A (Each Type at, 32V, 35A) |
| Display |
| LED | Power, Overload, Over Temperature |
| Protections |
| Low DC Input Voltage Alarm | 10.7V ± 0.1V |
| Low DC Input Voltage Shutdown | 10V ± 0.1V ; Auto-reset: 11.5V ± 0.3V |
| High DC Input Voltage Shutdown | 16.5V ; Auto-reset: < 16.5V |
| Short Circuit Shutdown | When Output Voltage drops to 170VAC or Lower for 1 to 1.5 Sec |
| Overload Shutdown | At Overload of 110% to 115% for 2 to 2.5 Sec |
| Ground Fault Shutdown | Only on GFCI outlets (5 to 6 mA leakage) |
| Over Temperature Shutdown | 90°C ± 5°C (Sensed at Transformer T3) ; Auto-reset at 65°C ± 5°C |
| Reverse Polarity on DC Input Side | External / internal DC sides fuses will bLow |
| Remote Control |
| Wired Remote Control with LED / LED Display Wired on / off Control | - RC-300 (sold separately) with 25’ cable
- By switching external contact
- By switching external 12V/24V signal
|
| Cooling |
| Forced Air Cooling | - Temperature Controlled Fan (Sensed at Transformer T6)
- Fan ON at 55°C ± 3°C; Fan off at 45°C ± 3°C
|
| Compliance |
| European Conformity | CE marked |
| Safety | - European Low Voltage Directive 2014/35/EU
- Standard : EN 60950-1
|
| EMI / EMC | European EMC Directive 2014/30/EU per folLowing Standards:- EMI: EN55022, Class A ; EN61000-3-2, -3-3
- EMS: EN55024; EN61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11
|
| Environment |
| Working Environment | Indoor use |
| Operating Temperature Range | - Operating Temperature -20 to 40°C / -4 to 104°F
- Storage Temperature -30 to 70°C / -22 to 158°F
- 90% relative humidity non-condensing
|
| Dimensions (W X D X H), Mm | 263 x 456.5 x 145 |
| Dimensions (W X D X H), Inches | 10.35 x 17.97 x 5.71 |
| Weight |
| KG | 9.8 |
| LBS | 21.6 |
