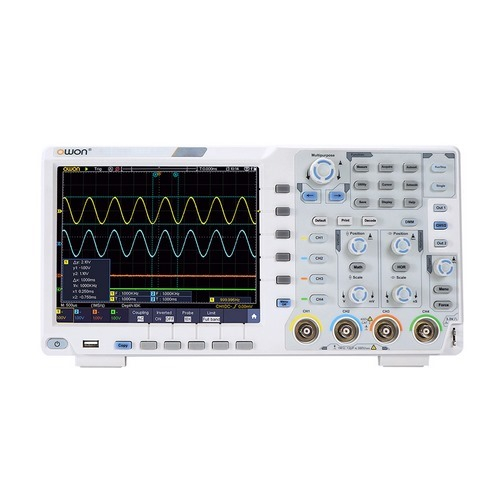

Owon, XDS3104A, OWON XDS3000-E Series 4CH 8 / 14bit Touchscreen Digital Oscilloscope 100MHz, 1Gs/s, 14 bits w/2 ADC, 4CHs, 70,000wfms/s

Oscilloscope + signal generator + multimeter +data logger +frequency counter + decoder. Support Li-on battery to implement floating test.

Featuers:

60MHz - 200MHz Bandwidth, 1GS/s sample rate
40M record length max 70,000 wfms/s waveform refresh rate
Low back ground noise
SCPI and LabVIEW supported
Multi-trigger and bus decoding function

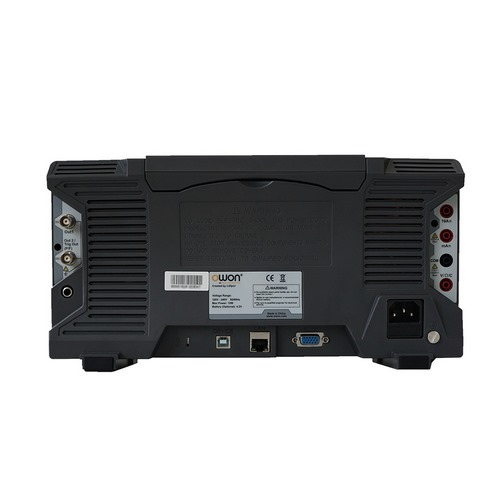

Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and VGA

For more information, please see Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Bandwidth	100MHz
Sample Rate	1GS/s
Vertical Resolution (A/D)	14 bits
Record length	40M
Waveform Refresh Rate	45,000 wfms/s
Horizontal Scale (s/div)	2ns/div - 1000s/div, step by 1 - 2 - 5
Channel	4
Display	8" color LCD, 800 x 600 pixels display
Sample Rate / Relay Time Accuracy	2.5 ppm
Input Coupling	DC, AC, GND
Vertical Sensitivity	1mV/div - 10V/div (at input)
Trigger Type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232
Trigger Mode	Auto, Normal and Single
Vertical Range	2V(1mV/div-50mV/div); 20V(100mV/div-1V/div); 200V(2V/div-10V/div)
Communication Interface	USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN
Frequency Counter	available
Power Supply	100V - 240V AC, 50/60Hz, CAT II
Fuse	2A, T class, 250V
Dimension (W x H x D)	340mmx177mmx90mm

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Bandwidth	100MHz
Sample Rate	1GS/s
Vertical Resolution (A/D)	14 bits
Record length	40M
Waveform Refresh Rate	45,000 wfms/s
Horizontal Scale (s/div)	2ns/div - 1000s/div, step by 1 - 2 - 5
Channel	4
Display	8" color LCD, 800 x 600 pixels display
Sample Rate / Relay Time Accuracy	2.5 ppm
Input Coupling	DC, AC, GND
Vertical Sensitivity	1mV/div - 10V/div (at input)
Trigger Type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232
Trigger Mode	Auto, Normal and Single
Vertical Range	2V(1mV/div-50mV/div); 20V(100mV/div-1V/div); 200V(2V/div-10V/div)
Communication Interface	USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN
Frequency Counter	available
Power Supply	100V - 240V AC, 50/60Hz, CAT II
Fuse	2A, T class, 250V
Dimension (W x H x D)	340mmx177mmx90mm

Note: Please read description carefully. Do not base your order on the picture presented.
