| Imaging Device | 1/3" Sony 2.1Mp Progressive Scan CMOS |
| Video Format | - Main Output: 1080p 30/25, 720p 60/50 HD-TVI (OSD selectable)
- Secondary Output: CVBS (OSD selectable NTSC/PAL) service video test point
|
| Picture elements | 1984 (H) x 1105 (V) |
| effective Picture elements | 1920 (H) x 1080 (V) |
| Horizontal Resolution | More than 1080 HTVL (in 1080p mode) |
| Sensitivity | .5 lux at F1.6 (AGC On) |
| Day/Night Type | Digital Day/Night |
| Lens Type | 2 Megapixel Varifocal Type 2.8~12mm F=1.6 |
| Video Output Connector Type | - TVI and CVBS: BNC 75Ω
- Test Video: CVBS video test point inside access cover, cable to BNC supplied
|
| Sync. Mode | Internal |
| OSD Menu | Multiple functions using 3-axis joystick inside housing; UTC Control |
| OSD Languages | english, Spanish, Portuguese, German, Russian, Japanese, French |
| UTC Control | Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling |
| DWDR / BLC / HSBLC | - OFF/WDR/BLC/HSBLC Selectable
- Adjustable for Level 1~10; also BLC area, HLC Color
|
| Auto Gain Control | OFF; 2~42dB |
| electronic Shutter | Auto; FLK; or Manual 1/30 (25) to 1/30,000 |
| White Balance | Auto / Push Lock / Manual |
| Color Correction | Gamma 0.45~.65, adjustable |
| Day & Night | Digital D/N; Optional Color-only and B/W only modes under OSD control |
| Sens-Up | DSS low light boost Off/Auto 2X~16X |
| 3D-DNR | Off/Low/Mid/High |
| Digital Zoom | 1X~8X |
| Defog | Off/Low/Mid/High |
| Mirror | Off / H-flip, V-flip, rotat |
| Motion Detection | Off/On for programmable zone with sensitivity adjust (pixel change detection) |
| Privacy Mask | Off/On with full programmability for 8 selectable zones |
| Lens Shading Compensation | Off/Low/Mid/High |
| DPC (Defective Pixel Correction) | Off/On |
| Other OSD Functions | Camera Title with position, Font Color; Image Sharpness |
| Power Source | 12VDC/24VAC |
| Power Consumption | 12VDC: 230mA, 24VAC: 2.5W |
| Operating Temperature | -40 °F ~ 140 °F (-40 °C ~ 60 °C) |
| environmental | IP68 water proof |
| Mechanical | Vandal proof metal construction |
| Positioning | 3-axis flexible positioning for wall or ceiling mounting |

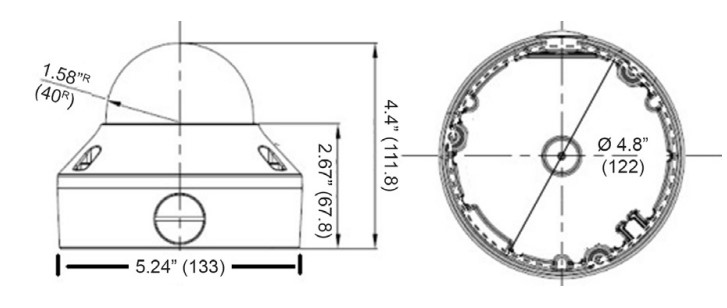

| Dimensions | Ø5.24” x 4.4” [Ø133 x 111.8mm |
| Weight | 1.6 lbs./.725 Kg |
| Certifications | Ce / FCC / RoHS |
