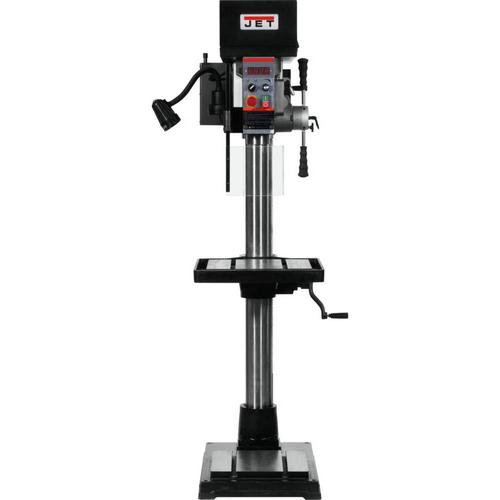

Buy Jet 354250, JDPE-20EVS-PDF EVS Drill Press, 20"

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Casted head for more accuracy and rigidity
CSA/US Certified
Emergency stop allows for immediate shut off
Forward and Reverse Switch
Forward and reverse switch for instant tapping mode
Front Mounted LED Spindle RPM Readout
Heavy casted column prevents failures prolonging the life of the machine
High torque at all speeds both forward and reverse
LED machine lamp delivers extra light for more precise drilling
Speed changes using a clutch system
Spindle guard protects user from flying debris
Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support
Spindle is supported by high quality ball bearings
Spindle power down feed system

The 20'' JET JDPE-20EVS-PDF EVS drill press produces high torque at all speeds in both forward and reverse necessary for a wide range of operations.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Drills to Center of Circle (In.)	10
Drilling Capacity Mild Steel (In.)	1-1/8
Drilling Capacity Cast Iron (In.)	1-1/4
Distance Column to Spindle (In.)	26-1/2
Table Size (L x W) (In.)	16-1/2 x 18-1/2
Tapping Capacity Mild Steel (In.)	3/4
Spindle Distance to Base (In.)	48.85
Spindle Distance to Table (Max.) (In.)	32.6
Spindle Taper (In. x TPI)	MT-3
Range of Spindle Speeds (RPM)	Low: 50 - 390, High 270 - 2000
Base Work Table (In.)	14-3/16 x 13
Motor (HP)	1.5HP, 230V, 3PH

Drills to Center of Circle (In.)	10
Drilling Capacity Mild Steel (In.)	1-1/8
Drilling Capacity Cast Iron (In.)	1-1/4
Distance Column to Spindle (In.)	26-1/2
Table Size (L x W) (In.)	16-1/2 x 18-1/2
Tapping Capacity Mild Steel (In.)	3/4
Spindle Distance to Base (In.)	48.85
Spindle Distance to Table (Max.) (In.)	32.6
Spindle Taper (In. x TPI)	MT-3
Range of Spindle Speeds (RPM)	Low: 50 - 390, High 270 - 2000
Base Work Table (In.)	14-3/16 x 13
Motor (HP)	1.5HP, 230V, 3PH

Note: Please read description carefully. Do not base your order on the picture presented.
