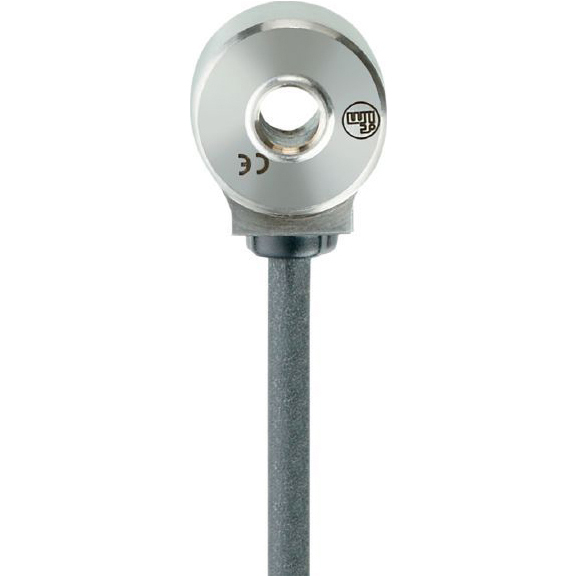

Buy IFM VSA204, -150 - 150 g Range Accelerometer

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

For the reliable vibration detection of machines and equipment
For connection to a diagnostic electronics for vibration sensors
Large operating temperature range and high protection rating for the requirements of harsh industrial environments
Compact and robust stainless steel housing with high mechanical overload protection
Very good repeatability and low linearity deviation

Applications

Vibration detection

For more information, please see pdf file Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Product Characteristics
Measuring Range of Vibration [g]	-150 - 150
Frequency Range [Hz]	1 - 10000
Measuring Principle	Capacitive
System	Screened cable; Drag Chain Suitability
Design	For connection to external diagnostic electronics VSE
Application	Vibration detection
Electrical Data
Operating Voltage [V]	7.2 - 10.8 DC
Current Consumption [mA]	< 15
Minimum Insulation Resistance [MΩ ]	100; (500 V DC)
Protection Class	III
Reverse Polarity Protection	Yes
Type of sensor	Microelectromechanical system (MEMS)
Outputs
Analog Current Output [mA]	0 - 10
Maximum Load [Ω ]	300
Measuring/Setting Range
Measuring Range of Vibration [g]	-150 - 150
Frequency Range [Hz]	1 - 10000
Measuring Principle	Capacitive
Sensitivity [μ A/g]	35.5
Number of Measurement Axes	1
Accuracy / Deviations
Linearity Deviation	0,2 %
Operating Conditions
Ambient Temperature [° C]	-20 - 80
Storage Temperature [° C]	-20 - 80
Maximum Relative Air Humidity [%]	80; (40 ° C: 50 % non condensing)
Protection	IP 67
MTTF [Years]	2104
Mechanical Data
Weight [g]	114.3
Type of Mounting	Mounting screw
Material	Housing: stainless steel (1.4404 / 316L)
Tightening Torque [Nm]	5
Mechanische Überlastfestigkeit [g]	500
Drag Chain Suitability	Yes

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Characteristics
Measuring Range of Vibration [g]	-150 - 150
Frequency Range [Hz]	1 - 10000
Measuring Principle	Capacitive
System	Screened cable; Drag Chain Suitability
Design	For connection to external diagnostic electronics VSE
Application	Vibration detection
Electrical Data
Operating Voltage [V]	7.2 - 10.8 DC
Current Consumption [mA]	< 15
Minimum Insulation Resistance [MΩ ]	100; (500 V DC)
Protection Class	III
Reverse Polarity Protection	Yes
Type of sensor	Microelectromechanical system (MEMS)
Outputs
Analog Current Output [mA]	0 - 10
Maximum Load [Ω ]	300
Measuring/Setting Range
Measuring Range of Vibration [g]	-150 - 150
Frequency Range [Hz]	1 - 10000
Measuring Principle	Capacitive
Sensitivity [μ A/g]	35.5
Number of Measurement Axes	1
Accuracy / Deviations
Linearity Deviation	0,2 %
Operating Conditions
Ambient Temperature [° C]	-20 - 80
Storage Temperature [° C]	-20 - 80
Maximum Relative Air Humidity [%]	80; (40 ° C: 50 % non condensing)
Protection	IP 67
MTTF [Years]	2104
Mechanical Data
Weight [g]	114.3
Type of Mounting	Mounting screw
Material	Housing: stainless steel (1.4404 / 316L)
Tightening Torque [Nm]	5
Mechanische Überlastfestigkeit [g]	500
Drag Chain Suitability	Yes

Note: Please read description carefully. Do not base your order on the picture presented.
