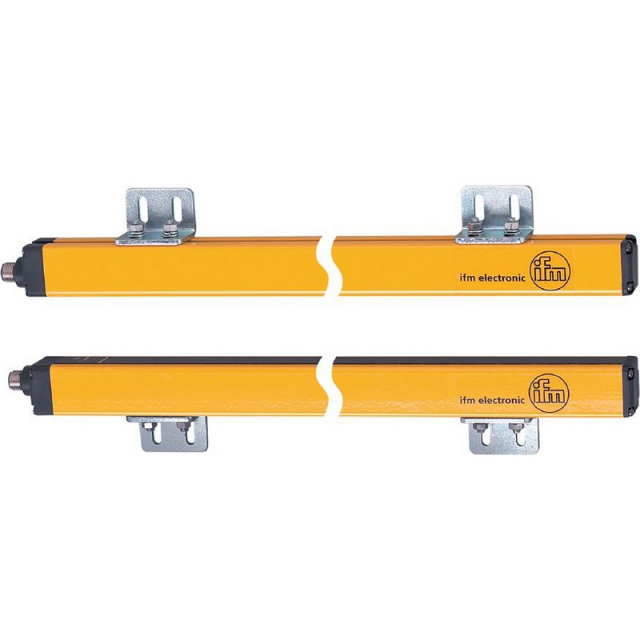

IFM OY806S Safety Light Curtain wiith 910mm Protected Area Height

Protected Area Height (mm): 910, Resolution (mm): 14
  • Brand IFM
  • Part # OY806S
  • Model # OYA0910-14-4-05-P-1-B
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Protected Area Height (mm):
    Protected Area Height (mm): 910
    Resolution (mm):
    Resolution (mm): 14

    Features:

    • With floating blanking
    • Reliable protection of hazardous areas
    • For safe material feed on presses
    • Complies with the requirements of type 4 to IEC 61496
    • Short and long range selectable via wiring

    For more information, please see pdf file Data Sheet

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Product Characteristics
    Type of LightInfrared light
    Electrical DesignPNP
    ProtectionIP 65
    Protective FunctionAccess prevention finger protection
    Electrical Data
    Operating Voltage Tolerance [%]20
    Operating Voltage [V]24 DC
    Protection ClassIII
    Reverse Polarity ProtectionYes
    Power-on Delay Time [s]<18
    Type of LightInfrared light
    Wave Length [nm]950
    Receiver
    Current Consumption [mA]125
    Transmitter
    Current Consumption [mA]83
    Outputs
    Electrical DesignPNP
    Number of OSSD Outputs2
    Maximum Current Load per OSSD Output [mA]500; (24 V)
    Short-Circuit ProtectionYes
    Monitoring Range
    Protected Area Height [mm]910
    Resolution (Detection Capacity d) [mm]14
    Protection Area Width (Low Light Intensity) [m]0 - 3
    Protection Area Width (High Light Intensity) [m]0 - 5
    Floating blankingYes
    Reaction Times
    Response Time [ms]15.5
    Operating Conditions
    ApplicationsClass C to EN 60654-1 weatherproof application
    Ambient Temperature [°C]0 - 55
    Maximum Relative Air Humidity [%]95
    ProtectionIP 65
    Safety Classification
    ESPE Type (IEC 61496-1)4
    MIssion Time TM [h]175200
    PFH [1/h]1,8E-08
    Mechanical Data
    Weight [g]5070
    Dimensions [mm]1011 x 35 x 45
    MaterialHousing: aluminum; front lens: PC
    Length L [mm]1011
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Product Characteristics
    Type of LightInfrared light
    Electrical DesignPNP
    ProtectionIP 65
    Protective FunctionAccess prevention finger protection
    Electrical Data
    Operating Voltage Tolerance [%]20
    Operating Voltage [V]24 DC
    Protection ClassIII
    Reverse Polarity ProtectionYes
    Power-on Delay Time [s]<18
    Type of LightInfrared light
    Wave Length [nm]950
    Receiver
    Current Consumption [mA]125
    Transmitter
    Current Consumption [mA]83
    Outputs
    Electrical DesignPNP
    Number of OSSD Outputs2
    Maximum Current Load per OSSD Output [mA]500; (24 V)
    Short-Circuit ProtectionYes
    Monitoring Range
    Protected Area Height [mm]910
    Resolution (Detection Capacity d) [mm]14
    Protection Area Width (Low Light Intensity) [m]0 - 3
    Protection Area Width (High Light Intensity) [m]0 - 5
    Floating blankingYes
    Reaction Times
    Response Time [ms]15.5
    Operating Conditions
    ApplicationsClass C to EN 60654-1 weatherproof application
    Ambient Temperature [°C]0 - 55
    Maximum Relative Air Humidity [%]95
    ProtectionIP 65
    Safety Classification
    ESPE Type (IEC 61496-1)4
    MIssion Time TM [h]175200
    PFH [1/h]1,8E-08
    Mechanical Data
    Weight [g]5070
    Dimensions [mm]1011 x 35 x 45
    MaterialHousing: aluminum; front lens: PC
    Length L [mm]1011
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
