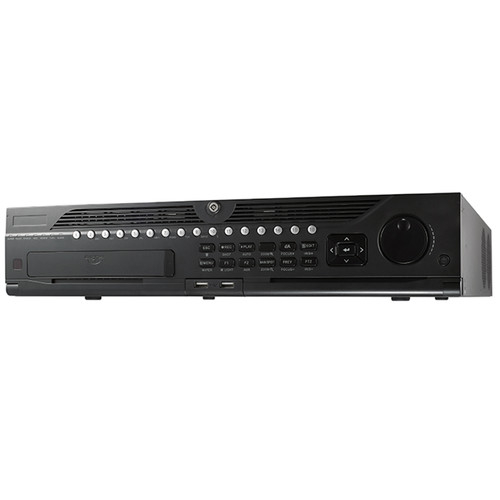

Hikvision DS-9008HUI-K8-24TB 8-Channel 5MP HD-TVI Hybrid DVR, 24TB

  • Brand Hikvision
  • Part # DS-9008HUI-K8-24TB
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Quantity
Share:
Ask a question

The TurboHD Series 8-Channel 5MP DVR from Hikvision supports up to eight video inputs from HD-TVI, CVBS, and IP cameras. Equipped with eight HDD ports, each of which can hold an HDD up to 8TB, the recorder can accommodate up to 64TB of internal storage (24TB preinstalled). The DVR plays back video at up to 5MP resolution in real time. It uses H.265+ compression technology, which improves recording efficiency and reduces data storage costs. The system features audio input and output interfaces.

Features:

  • Video analytics include line crossing, intrusion, scene change detection, people counting, heat maps, and Video Quality Diagnostics (VQD)
  • HDD hot-swap support for RAID 0, 1, 5, 6, and 10
  • Full-channel recording at up to 5MP
  • HDMI-1 and VGA output up to 1920 x 1080
  • HDMI-2 output up to 4K UHD (3840 x 2160)
  • Long-range transmission over coax
  • 8-channel synchronous playback
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Video CompressionH.265+, H.265, H.264+, and H.264
Analog Video Input8 x BNC interfaces (1 V p-p, 75 Ohms)
HD-TVI Input5 MP, 4 MP, 3 MP, 1080p, 720p
CVBS InputSupported
IP Video Inputs10 channels, up to 18 channels with analog channels disabled
Up to 12 MP resolution
Supports H.265+, H.265, H.264+, and H.264 IP cameras
Network Bandwidth260 Mb/s
Audio CompressionG.711u
Audio Input8 x RCA (2 V p-p, 1 kOhm)
CVBS Output1 x BNC (1 V p-p, 75 Ohms)
Resolution: 704 x 576 PAL
704 x 480 NTSC
HDMI / VGA Output1 channel, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz
HDMI Output1 channel, 4K UHD (3840 x 2160) at 30 Hz, 2K (2560 x 1440), 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz
Video Loop OutputSupported
Encoding Resolutions5 MP, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, and CIF
Frame RateMain Stream: 5 MP at 12 fps, 4 MP at 15 fps, 3 MP at 18 fps, 1080p/720p/WD1/4CIF/VGA/CIF at 25 fps (PAL) / 30 fps (NTSC)
Sub-Stream: WD1/4CIF/CIF at 25 fps (PAL) / 30 fps (NTSC)
Video Bit Rate32 kb/s to 6 Mb/s
Audio Output2 x RCA (Linear, 1 kOhm)
Audio Bit Rate64 kb/s
Dual StreamSupported
Stream TypeVideo, video and audio
Synchronous PlaybackEight channels
Product Details
Video CompressionH.265+, H.265, H.264+, and H.264
Analog Video Input8 x BNC interfaces (1 V p-p, 75 Ohms)
HD-TVI Input5 MP, 4 MP, 3 MP, 1080p, 720p
CVBS InputSupported
IP Video Inputs10 channels, up to 18 channels with analog channels disabled
Up to 12 MP resolution
Supports H.265+, H.265, H.264+, and H.264 IP cameras
Network Bandwidth260 Mb/s
Audio CompressionG.711u
Audio Input8 x RCA (2 V p-p, 1 kOhm)
CVBS Output1 x BNC (1 V p-p, 75 Ohms)
Resolution: 704 x 576 PAL
704 x 480 NTSC
HDMI / VGA Output1 channel, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz
HDMI Output1 channel, 4K UHD (3840 x 2160) at 30 Hz, 2K (2560 x 1440), 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz
Video Loop OutputSupported
Encoding Resolutions5 MP, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, and CIF
Frame RateMain Stream: 5 MP at 12 fps, 4 MP at 15 fps, 3 MP at 18 fps, 1080p/720p/WD1/4CIF/VGA/CIF at 25 fps (PAL) / 30 fps (NTSC)
Sub-Stream: WD1/4CIF/CIF at 25 fps (PAL) / 30 fps (NTSC)
Video Bit Rate32 kb/s to 6 Mb/s
Audio Output2 x RCA (Linear, 1 kOhm)
Audio Bit Rate64 kb/s
Dual StreamSupported
Stream TypeVideo, video and audio
Synchronous PlaybackEight channels
