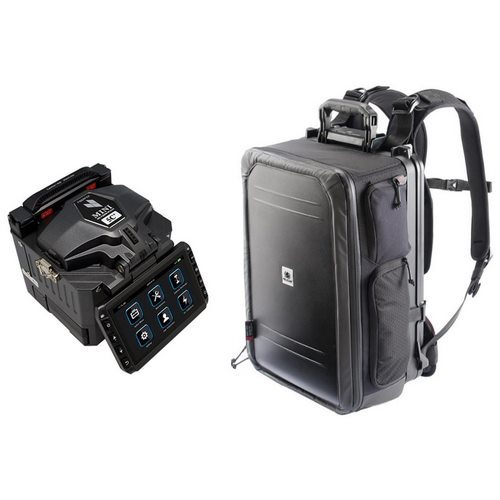

Buy FiberFox Mini5C-BACKPACK, Core Alignment Splicer with Kit Backpack

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Package Included:: Package Included: Kit with Backpack, Simple Fiber Tool Kit, LC and SC Cleaning Pen

FiberFox, Mini5C-BACKPACK, Core Alignment Splicer with Kit Backpack, Simple FiberTool Kit, LC and SC Cleaning Pen

Mini5C-BACKPACK Includes Only:

Mini5C-FT3X
Pelican backpack
Simple fiber tool kit
LC and SC cleaning pen

Features:

7 sec with single-mode fiber (quick mode)
16 sec Heating time
9 sec with continuous heating mode

The Smallest and the Lightest Core Alignment Fiber Fusion Splicer.

Guaranteed Stability and Splicing Performance.

SOC Compatible.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Splicing Method

Economical & High-Performance Core Alignment Splicer

Average Loss

SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB)

Return Loss

>>60dB

Splice Time

12s average SM / SM 7s Quick mode

Electrode Lifespan

>3,500 arcs

Applicable Fiber

SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A,
IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)

Cleaved Length

Coating Diameter < 0.25mm = 5-16mm
Coating Diameter > 0.25mm = 8-16mm minimum

Coating Diameter

100-1000um

Cladding Diameter

80-150um

Heating Programs

Factory-installed mode : 3, User installable mode: 23

Heating Time

Typical 18s

Protection Sleeve

40mm, 60mm, SOC-3.0, SOC-0.9

Data Output

Micro HDMI-USB master device

Splice Programs

8 user modes, User installable mode: 70+

Splice Memory

Up to 2000 records

Battery

Typical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard>

Power Supply

AC 100-240V input or DC 9~14V

Monitor

Color 4.3" LCD monitor, with Touch Screen (Tempered Glass)

Cameras

2 CCD camera system

Magnification

XY: 150 times, X/Y: 300 times

Fiber Display

X/Y or XY, single X.Y

Weight

2.88 lbs. (without battery)

Size

4.8 x 4.88 x 5.4 (in)

Wind Protection

The max wind speed 15m/s

Operating Environment

Elevation 0-5000 meters, 14~140°F, 0~95% relative humidity

Storage Condition

Temperature -40 to 176°F, 0~95% relative humidity, battery -4~86°F

Pull Test

1.96~2.25N (standard)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Splicing Method

Economical & High-Performance Core Alignment Splicer

Average Loss

SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB)

Return Loss

>>60dB

Splice Time

12s average SM / SM 7s Quick mode

Electrode Lifespan

>3,500 arcs

Applicable Fiber

SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A,
IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)

Cleaved Length

Coating Diameter < 0.25mm = 5-16mm
Coating Diameter > 0.25mm = 8-16mm minimum

Coating Diameter

100-1000um

Cladding Diameter

80-150um

Heating Programs

Factory-installed mode : 3, User installable mode: 23

Heating Time

Typical 18s

Protection Sleeve

40mm, 60mm, SOC-3.0, SOC-0.9

Data Output

Micro HDMI-USB master device

Splice Programs

8 user modes, User installable mode: 70+

Splice Memory

Up to 2000 records

Battery

Typical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard>

Power Supply

AC 100-240V input or DC 9~14V

Monitor

Color 4.3" LCD monitor, with Touch Screen (Tempered Glass)

Cameras

2 CCD camera system

Magnification

XY: 150 times, X/Y: 300 times

Fiber Display

X/Y or XY, single X.Y

Weight

2.88 lbs. (without battery)

Size

4.8 x 4.88 x 5.4 (in)

Wind Protection

The max wind speed 15m/s

Operating Environment

Elevation 0-5000 meters, 14~140°F, 0~95% relative humidity

Storage Condition

Temperature -40 to 176°F, 0~95% relative humidity, battery -4~86°F

Pull Test

1.96~2.25N (standard)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
