Buy Edwards Vacuum D39700000, TIC Instrument Gauge Controller, 3-Head

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Number of Measurement Channels:: Number of Measurement Channels: 3

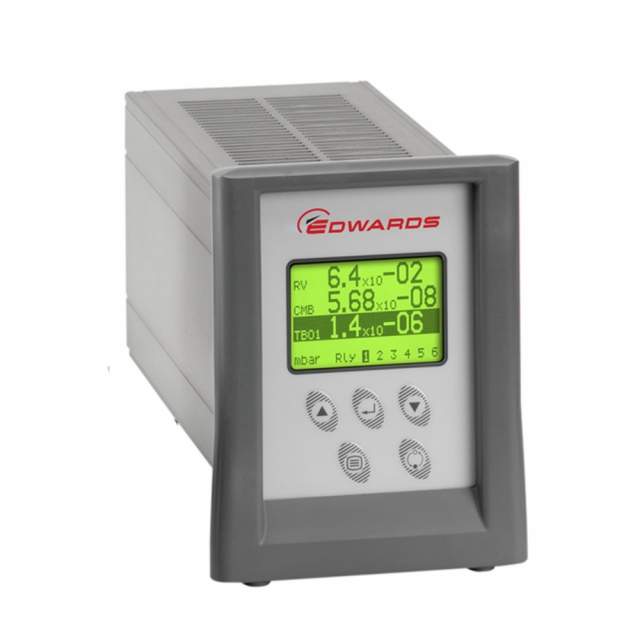

Edwards Vacuum, D39700000, TIC Instrument Gauge Controller, 3-Head, RS232

Features:

Universal controller for up to 6 active gauges
Compact design
Clear, easy-to-use graphical user interface
Serial communication Windows™ PC program including data logger, plus analog outputs
RS232 interface and analog output
Supports APG100, APGXH, WRG, AIM and AIGX gauges

The TIC instrument controller offers comprehensive control and display of up to 6 compatible Edwards gauges. The intuitive user interface, 6 set points, and full Windows Software for control and data logging functionality.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

General Product Information

Dimension Length

0.247 m

Supply Frequency

50 Hz / 60 Hz

Weight

1.70 kg

Power Supply Phase

1-Ph

Dimension Height

0.129 m

Dimension Width

0.106 m

Supply Voltage

1Ph
90-264 V
50/60Hz

IP Rating

IP20

Connection Power

IEC EN60320 C14 - Male (for C13 plug on mains cable)

Measurement Channels

3 Gauges

Performance Data

Pressure Displayed Maximum

2.000 x 10⁵ Pa

Environmental Conditions

Temperature Ambient Operation Minimum

0.000 °C

Temperature Ambient Operation Maximum

40.00 °C

Temperature Ambient Storage Minimum

-30.00 °C

Temperature Ambient Storage Maximum

70.00 °C

Operation Conditions - Limitations

Altitude Maximum

3000.00 m

Connectivity - Communication Interface

Communication Interfaces Customer

RS232 (serial)
RS485 (serial)

Connection electrical comms interface connector

RJ45 (FCC 68) - Female

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

General Product Information

Dimension Length

0.247 m

Supply Frequency

50 Hz / 60 Hz

Weight

1.70 kg

Power Supply Phase

1-Ph

Dimension Height

0.129 m

Dimension Width

0.106 m

Supply Voltage

1Ph
90-264 V
50/60Hz

IP Rating

IP20

Connection Power

IEC EN60320 C14 - Male (for C13 plug on mains cable)

Measurement Channels

3 Gauges

Performance Data

Pressure Displayed Maximum

2.000 x 10⁵ Pa

Environmental Conditions

Temperature Ambient Operation Minimum

0.000 °C

Temperature Ambient Operation Maximum

40.00 °C

Temperature Ambient Storage Minimum

-30.00 °C

Temperature Ambient Storage Maximum

70.00 °C

Operation Conditions - Limitations

Altitude Maximum

3000.00 m

Connectivity - Communication Interface

Communication Interfaces Customer

RS232 (serial)
RS485 (serial)

Connection electrical comms interface connector

RJ45 (FCC 68) - Female

Note

Note: Please read description carefully. Do not base your order on the picture presented.
