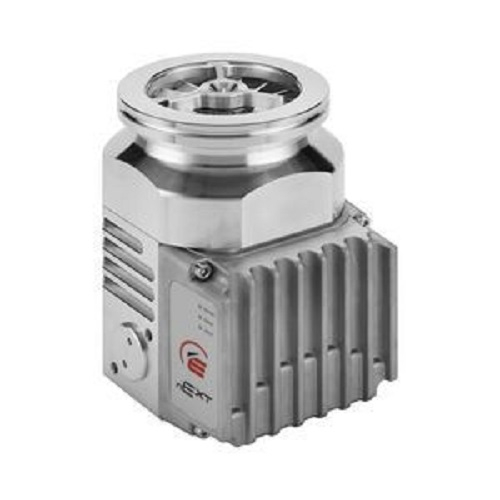

Edwards Vacuum, B8G210B01, nEXT85D Turbomolecular Pump with ISO63 Inlet Flange, NW16, 80W

Features:

Class leading performance in a reduced footprint
Enhanced customer choice with standard and compression-focused variants
Increased operating envelope maximized by Edwards' patented direct impeller temperature measurement technology
The bearing and oil cartridge in the nEXT85 are fully end-user serviceable
Intelligent pumps with included micro USB port and Edwards nST software allowing pump monitoring, control and configuration

The rotor has been totally re-designed to optimize pump performance and achieve both higher speeds and higher compression while maintaining high levels of reliability. In addition to enhanced performance nEXT85 benefits from the same service and operational functionalities from the larger nEXT range, including field serviceability and in-built intelligence, for a truly class leading product.

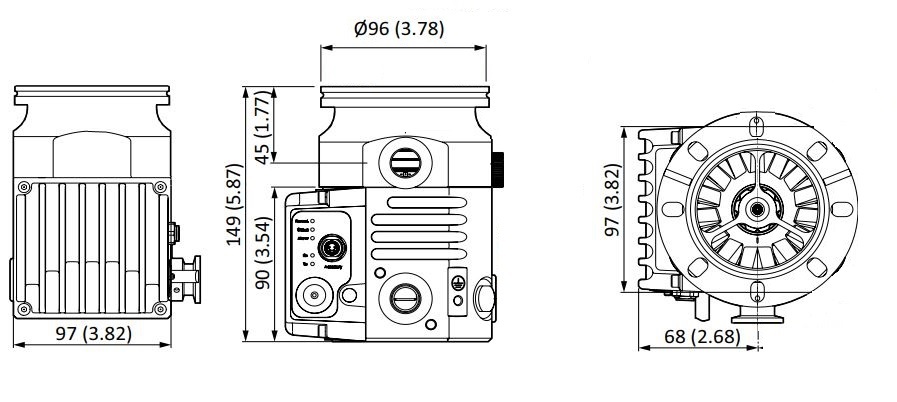

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Performance Data

Power Total Rated

80.00 W

Pumping Speed Nominal

0.084 m³

Pressure Ultimate

5.000 x 10^-7 Pa

Pressure Backing Maximum

1900.00 Pa

Rotational Speed Nominal

1500.00 Hz

Ramp Up Time

130.00 s

Compression Ratio N2

1.000 x 10¹¹

Compression Ratio He

8.000 x 10⁶

Compression Ratio H2

2.000 x 10⁵

Pumping Speed Helium Nominal

0.078 m³

Pumping Speed H2 Nominal

0.060 m³

Pumping Speed Ar Nominal

0.044 m³

General Product Information

Dimension Length

0.129 m

Connection Vacuum Inlet Flange

DN 63 ISO-K

Noise Level

34.00 dB(A)

Supply Frequency

DC Voltage

Weight

3.00 kg

Dimension Height

0.149 m

Cooling Method

Air Cooling (convection)
Air Cooling (forced - fan)
Water Cooling

Connection Vacuum Outlet Flange

DN 16 ISO-KF (NW16)

Dimension Width

0.117 m

Supply Voltage

DC 24VDC 48V

IP Rating

IP64

Connection Cooling

1/8" BSPP (G) Female

Connection Power

DSUB 15-PIN - Male (flying lead 300 mm)

Connection Purge Gas Ballast and Vent Connector

1/8" BSPP (G) Female
1/8" BSPP (G) Female

Recommended Controller

TIC - Turbo and Instrument Controller - power and control

Environmental Conditions

Temperature Ambient Operation Minimum

5.00 °C

Temperature Ambient Operation Maximum

40.00 °C

Magnetic Field Resistance Maximum for a Radial Magnetic Field

5.000 x 10^-3 T

Operation Conditions - Limitations

Flow Cooling Water Minimum

4.167 x 10^-6 m³

Temperature Cooling Water Maximum

40.00 °C

Altitude Maximum

2000.0 m

Temperature Cooling Water Minimum

10.00 °C

Connectivity - Communication Interface

Connection Electrical Comms Interface Connector

DSUB 15-PIN - Male (flying lead 300 mm)USB micro - Female

Communication Interface Protocol

DX protocol

Connection Accessories Connector

Phoenix Contact M8 4-pin connector Female (SACC-DSI-M 8FS^-4CON-M12/0.5)

Classification

High / Medium / Rough Vacuum Classification

High Vacuum Pump

Dry or Wet Pump

Dry pump

Vacuum Pump Technology

Turbomolecular pump - hybrid bearing

Product Pressure Range

High Vacuum - 1*10^-3 - 1*10^-7 mbar

Notes
