Edwards Vacuum B42802000 QSB160 Quarter Butterfly Valve, Manual

Size: ISO160, Operation Type: Manual
  • Brand Edwards Vacuum
  • Part # B42802000
  • Model # QSB160
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Size:
    Size: ISO160
    Operation Type:
    Operation Type: Manual

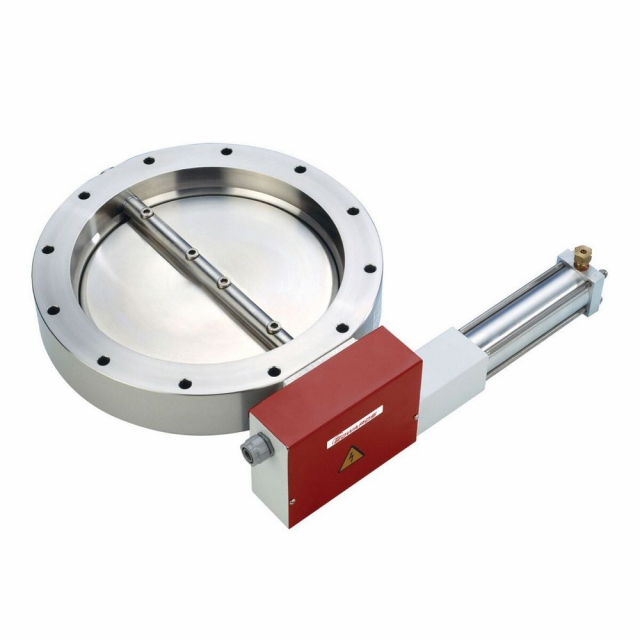

    Edwards Vacuum, B42802000, QSB160 Quarter Swing Butterfly Valve, Manual Operation

    Features:

    • Manual operation
    • High conductivity
    • Resists atmosphere in either direction
    • Compact and quick-acting
    • Corrosion resistant construction

    The QSB quarter swing valves are compact, quick-acting, high-conductance isolation valves. The QSB valves have a polished, stainless steel, ISO flanged body with fluoroelastomer ‘O' ring sealed valve plate and shaft. The valve plate ‘O' ring groove is vented to help maintain a stable high vacuum. The valve shaft ‘O' rings and bearings are lubricated with Fomblin® grease to prevent gas bursts from behind the shaft seals.

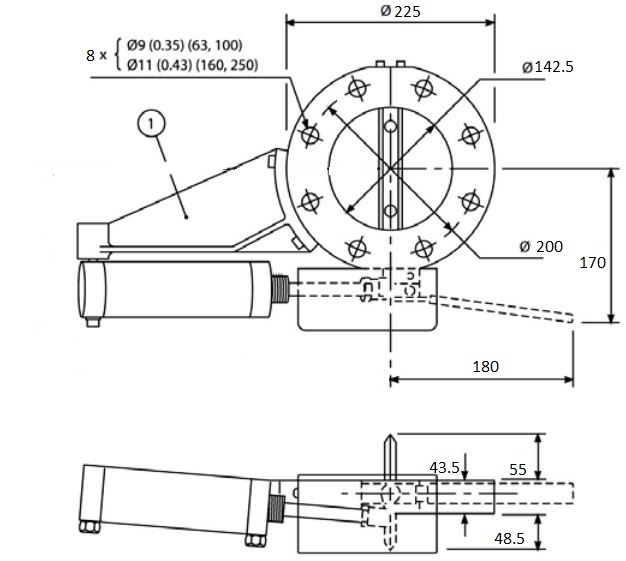

    Dimensions:

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Valve Plate MaterialAISI 304 stainless steel
    Operating Pressure Range10-9- 3000 mbar / 8 x 10-10- 2250 Torr
    Maximum Pressure Differential1000 mbar / 750 Torr
    Operating Temperature Range5 - 40 °C
    Maximum Baking Temperature200 °C (without actuator)
    Leak Rate< 10-9 mbar ls-1/ 8 x 10-10 Torr ls-1
    Pneumatic Valves Only Reliability (MTTF)>1.5 x 105cycles
    Pneumatic Connectors1/8 inch BSP, for 6mm OD tube
    Number of Connectors2
    Maximum Voltage30V
    Maximum Current500mA
    Maximum Power6W
    Reed Switch Connectors3m flying leads
    Microswitch Rating5A at 48V
    Microswitch ConnectorsSolder tags
    Flange SizeISO160
    Conductance2700 ls-1
    Recommended Pneumatic Pressure(Bar)2.8 to 4.2
