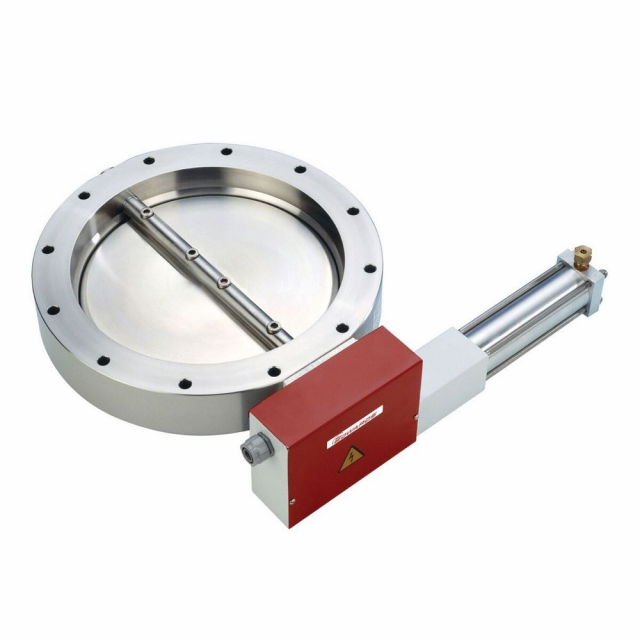

Edwards Vacuum B42409000 QSB63P Double Quarter Swing Valve

Size: ISO63
  • Brand Edwards Vacuum
  • Part # B42409000
  • Model # QSB63P
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Size:
    Size: ISO63

    Edwards Vacuum, B42409000, QSB63P Double Pneumatic Operation Quarter Swing Valve with Reed Switches

    Features:

    • Double pneumatic operation
    • High conductivity
    • Resists atmosphere in either direction
    • Compact and quick-acting
    • Corrosion resistant construction

    The QSB quarter swing valves are compact, quick-acting, high-conductance isolation valves. The QSB valves have a polished, stainless steel, ISO flanged body with fluoroelastomer ‘O' ring sealed valve plate and shaft. The valve plate ‘O' ring groove is vented to help maintain a stable high vacuum. The valve shaft ‘O' rings and bearings are lubricated with Fomblin® grease to prevent gas bursts from behind the shaft seals.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    >
    General Product Information
    Connection Vacuum Inlet FlangeDN 63 ISO-F
    Weight2.70 kg
    Connection vacuum Outlet FlangeDN 63 ISO-F
    Recommended Pressure Range Minimum1.000 x 10-7 Pa
    Recommended Pressure Range Maximum3.000 x 105 Pa
    Leak Rate1.000 x 10-10 Pa x m3
    Valve Actuation MethodPneumatic
    Environmental Conditions
    Temperature Ambient Operation Minimum5.00 °C
    Temperature Ambient Storage Minimum0.000 °C
    Temperature Ambient Storage Maximum50.00 °C
    Performance Data
    Pressure Differential Maximum1.000 x 105 Pa
    Power Consumption Maximum6W
    Leak Rate Across Seat1.000 x 10-10 Pa x m3
    Operation Conditions - LimitationsISO63
    Temperature Baking Maximum200.00 °C
    Pressure Maximum3.000 x 105 Pa
    Reliability MTTF1.500 x 105
    Material of Construction
    Material BodyStainless Steel 1.4301 / 304 / X5 CrNi 18 10
    Material AbbreviationSt St
    Classification
    Product Pressure RangeHigh Vacuum - 1*10-3 - 1*10-7 mbar
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    >
    General Product Information
    Connection Vacuum Inlet FlangeDN 63 ISO-F
    Weight2.70 kg
    Connection vacuum Outlet FlangeDN 63 ISO-F
    Recommended Pressure Range Minimum1.000 x 10-7 Pa
    Recommended Pressure Range Maximum3.000 x 105 Pa
    Leak Rate1.000 x 10-10 Pa x m3
    Valve Actuation MethodPneumatic
    Environmental Conditions
    Temperature Ambient Operation Minimum5.00 °C
    Temperature Ambient Storage Minimum0.000 °C
    Temperature Ambient Storage Maximum50.00 °C
    Performance Data
    Pressure Differential Maximum1.000 x 105 Pa
    Power Consumption Maximum6W
    Leak Rate Across Seat1.000 x 10-10 Pa x m3
    Operation Conditions - LimitationsISO63
    Temperature Baking Maximum200.00 °C
    Pressure Maximum3.000 x 105 Pa
    Reliability MTTF1.500 x 105
    Material of Construction
    Material BodyStainless Steel 1.4301 / 304 / X5 CrNi 18 10
    Material AbbreviationSt St
    Classification
    Product Pressure RangeHigh Vacuum - 1*10-3 - 1*10-7 mbar
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
