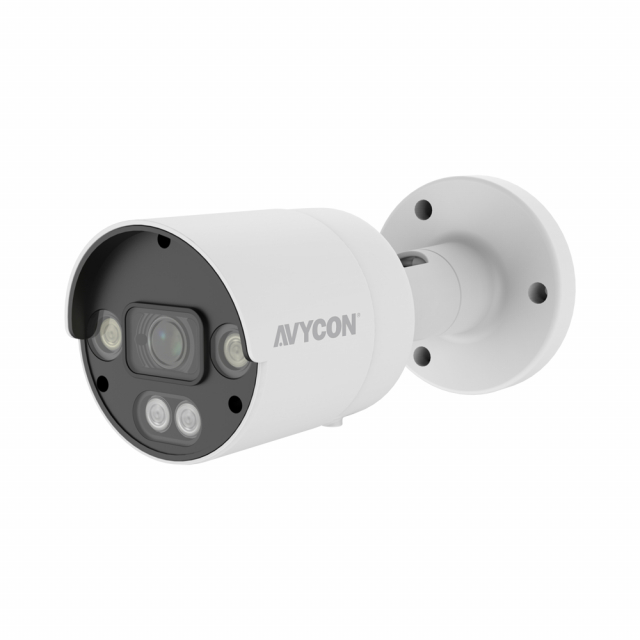

Buy AVYCON AVC-TCB21F28, 2MP Infinitecolor Fixed Bullet Camera

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Camera:: Camera: 2MP
Type:: Type: Bullet

Features:

2MP (1920 x 1080) at 25fps
Max. Resolution: 1920 x 1080
True Day & Night ICR
Up to 98 ft. IR Illumination
Fixed 2.8mm Lens
2D DNR, HLC, BLC
AoC (Audio over Coaxial) up to 22.9ft
Supports Remote Access with Windows, macOS, iOS and Android
Operating Temperature: -22°F - 122°F
DC12V
NDAA Compliant

Second Generation HD-TVI Series continues providing the quality expected from the AVYCON brand. This 2MP camera includes an upgraded Smart IR LED array. With the newest generation chipset and board design, we have also increased power efficiency with a possible 20% savings in consumption. This camera also includes AoC (Audio over Coaxial) up to 22.9ft and a 2.8mm fixed Lens with Autofocus capabilities that can be controlled through the DVR. Also standard with this series is Digital NR, AGC, and BLC capabilities along with IP67 outdoor rating.

Infinite Color

IP67

Smart IR

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Resolution

2MP

Image Size

1920 x 1080

Video Output

1-channel BNC Video Output

Image System

PAL / NTSC

Electronic Shutter Speed

Auto

IR Distance

Up to 98ft.

Video Formats

HD-TVI / AHD / CVI / CVBS (Analog)

Frame Rate

HD-TVI / AHD / CVI: 25 FPS
CVBS Analog: 960H

Min. Illumination

0.05lux at F1.2 (AGC ON), 0Lux with IR ON

Lens

fixed 2.8mm Lens

Angular Field of View

H:109.7° / V:57.6° / D:131.0°

Lens Mount

Φ14mm

S/N Ratio

36dB

Function Control

OSD, Control over Coax (UTC)


Day & Night

Color / Ext / BW (Black and White)

Digital WDR

N/A

Digital Noise Reduction

Yes (2D DNR)

Auto Gain Control (AGC)

Yes

Auto White Balance (AWB)

Yes

Backlight Compensation (BLC)

Edge Brightness Compensation

Yes

Defog

Yes

HLC

Yes

Sharpness

Yes

Mirror Image

Yes

Smart IR (Anti-SAT)

Yes

Image Setting

Yes

Defect Correction

Auto / Manual

General

Audio

Audio over coaxial

Audio Range

22.9ft (7m)

Angle Adjustment

Any Angle

Input Voltage

DC 12V (±10%)

Power Consumption

IR OFF ≤0.8W, IR ON ≤4W

Ingress Protection

IP67

Working Temperature

-22°~131° F (-30°~55° Celcius)

Dimensions

3.30" x 7.39" (84.0mm x 187.95mm)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Resolution

2MP

Image Size

1920 x 1080

Video Output

1-channel BNC Video Output

Image System

PAL / NTSC

Electronic Shutter Speed

Auto

IR Distance

Up to 98ft.

Video Formats

HD-TVI / AHD / CVI / CVBS (Analog)

Frame Rate

HD-TVI / AHD / CVI: 25 FPS
CVBS Analog: 960H

Min. Illumination

0.05lux at F1.2 (AGC ON), 0Lux with IR ON

Lens

fixed 2.8mm Lens

Angular Field of View

H:109.7° / V:57.6° / D:131.0°

Lens Mount

Φ14mm

S/N Ratio

36dB

Function Control

OSD, Control over Coax (UTC)


Day & Night

Color / Ext / BW (Black and White)

Digital WDR

N/A

Digital Noise Reduction

Yes (2D DNR)

Auto Gain Control (AGC)

Yes

Auto White Balance (AWB)

Yes

Backlight Compensation (BLC)

Edge Brightness Compensation

Yes

Defog

Yes

HLC

Yes

Sharpness

Yes

Mirror Image

Yes

Smart IR (Anti-SAT)

Yes

Image Setting

Yes

Defect Correction

Auto / Manual

General

Audio

Audio over coaxial

Audio Range

22.9ft (7m)

Angle Adjustment

Any Angle

Input Voltage

DC 12V (±10%)

Power Consumption

IR OFF ≤0.8W, IR ON ≤4W

Ingress Protection

IP67

Working Temperature

-22°~131° F (-30°~55° Celcius)

Dimensions

3.30" x 7.39" (84.0mm x 187.95mm)

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
