| Device |
| Product Type | Speed Dome |
| Maximum Resolution | 2MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8" |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.002 lux at F1.7 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED x 6 (850 nm) |
| IR Working Distance | 120m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens |
| Focal Length | Zoom, f5.0-80mm |
| Aperture | F1.7-F2.8 |
| Zoom Ratio | 16x optical zoom |
| Iris | Adaptive iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 51.7° - 4.89° |
| Vertical Viewing Angle | 30.49° - 2.75° |
| PTZ |
| Manual Panning / Tilting Speed | 0.1° - 80°/second, 0.1° - 80°/second |
| Preset Panning / Tilting Speed | 80°/second, 80°/second |
| Panning Range | 360° endless |
| Tilting Range | -15°~90° (with E-flip) |
| PTZ Control | Remote manual control, Speed Control, Drag to Pan and Tilt, 1024 preset points, 16 preset tours |
| Absolute Position | Yes |
| Video |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | - 30 fps at 1920 x 1080
- 30 fps at 1280 x 720
- 30 fps at 720 x 576
- 30 fps at 640 x 360
|
| Multi-Streaming | Simultaneous triple streams |
| Wide Dynamic Range | Extreme WDR (140 dB) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Built-in Analytics | Deep Learning : People Counting, Crowd Detection, Tampering Detection, PTZ Auto Tracking, Incorrect Direction Detection, Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, Missing Object Detection |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Network |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Event |
| Event Trigger | Video motion detection, Video loss |
| Event Response | Notify control center, Go to PTZ preset point or preset tour, E-mail notification with snapshots, Save video or snapshot to local storage, Upload snapshot to FTP server |
| Integration |
| Edge Recording | Support (integration with NVR by ONVIF Profile G)* |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Operating Button | Reset Button |
| General |
| Power Source | DC 12V, High PoE (IEEE802.3at) |

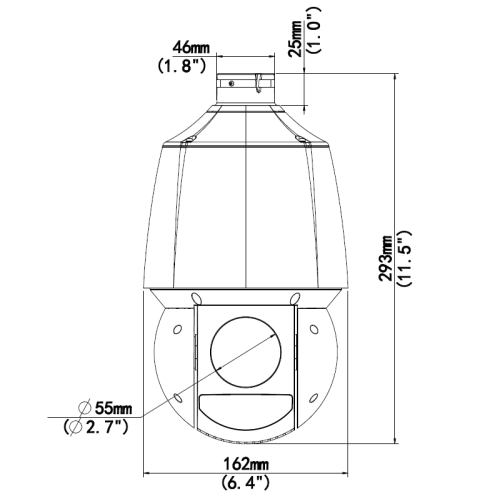

| Dimensions | (Ø x H): 162mm x 293mm (6.4" x 11.5") |
| Environmental Casing | Weatherproof (IP66), Vandal proof metal casing (IK10) |
| Bundled Accessories | Power Adapter |
| Mount Type | Pendant |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Surge Protection | 6KV |
| Approvals | CE Class B, FCC Class B, IP66, IK10 (metal casing), UL Listed |
